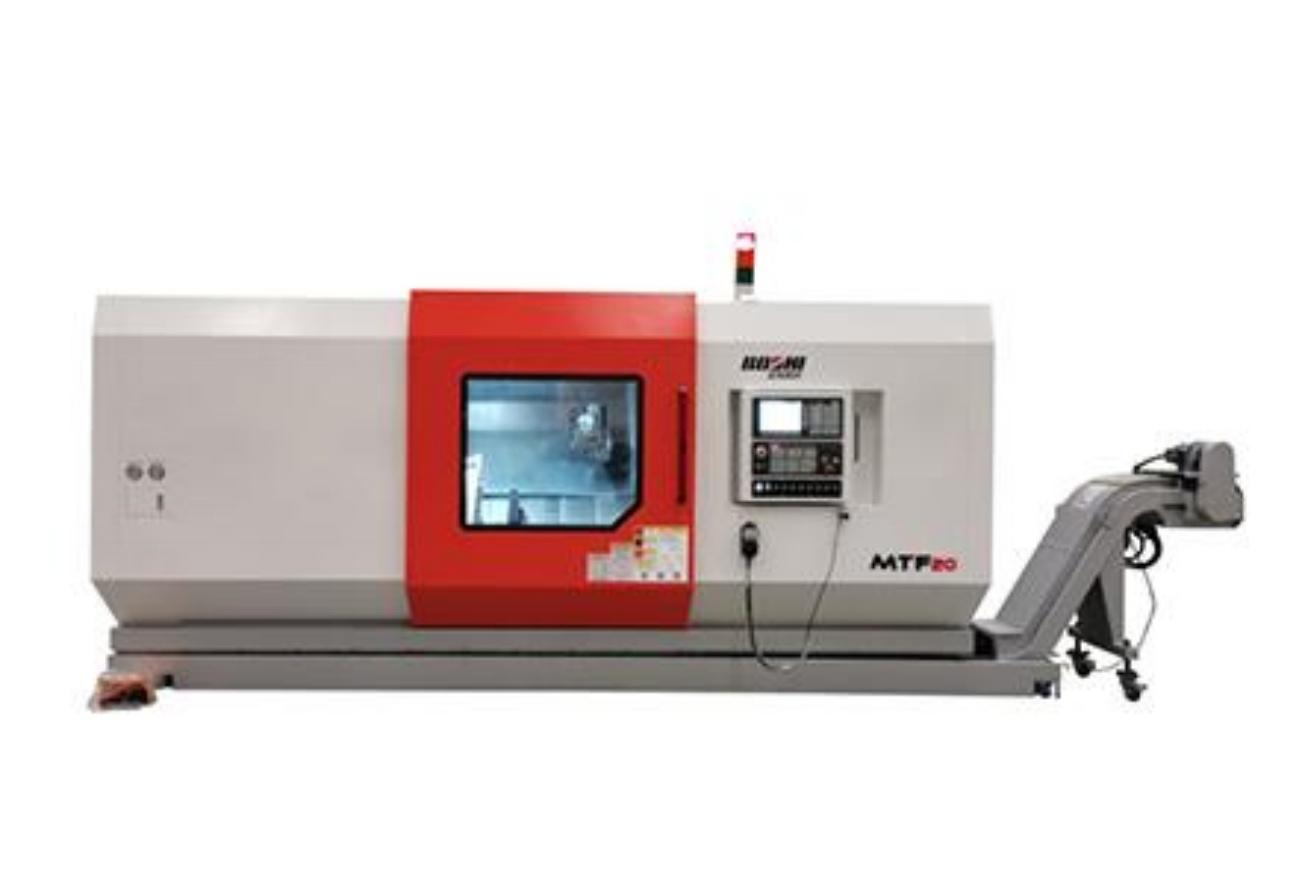

MTF20 dual spindle dual tool holder CNC lathe, the machine tool adopts dual spindle, dual tool holders in the column layout, wide number of CNC control system, can realize dual spindle, dual tool holders at the same time turning processing. The Z feed of the machine tool can complete the two-way clamping of the workpiece, realize the positive and negative machining of the workpiece, and complete all the turning processing of the workpiece under one clamping, which can be widely applied to the processing requirements of new energy, automobile, light industry and other industries.
|
Item |
Unit |
Specifications |
||
|
Capacity
|
Max. processing diameter |
mm |
Φ 250 |
|
|
Max. workpiece length |
mm |
1100 |
||
|
Max. processing length |
mm |
1000 |
||
|
Max. processing bar diameter |
mm |
Φ 65 |
||
|
Spindle
|
Hydraulic chuck diameter |
mm(in) |
Φ 2 10(8 ″ ) |
|
|
Spindle nose |
|
A2- 6（GB/T5900.1） |
||
|
spindle thru-hole |
mm |
Φ 66 |
||
|
Spindle bearing diameter (front/rear) |
mm |
Φ 1 2 0/ Φ 95 |
||
|
Max.speed of spindle |
r/min |
3000 |
||
|
Main motor power |
KW |
22 |
||
|
Apron
|
Travel distance |
X1／X2 |
mm |
210／210 |
|
|
Z1／Z2／Z3 |
|
1050 |
|
|
Rapid feed speed
|
X1／X2 |
m/min |
24／30 |
|
|
|
Z1／Z2／Z3 |
|
|
|
|
Servo motor torque |
X1／X2 |
|
10Nm |
|
|
|
Z1／Z2／Z3 |
|
22 Nm |
|
|
Ball screw diameter X1, X2/Z1, Z2, Z3 |
mm |
36／36 |
||
|
Turret
|
Number of stations |
|
Upper Turret Vertical 170 Four Stations, Lower Turret 1 Fixed Knife Seat |
|
|
Tool size |
mm |
2 5x 2 5 |
||
|
Sub-spindle
|
Chuck size |
mm(in) |
Φ 210 ( 8 ") |
|
|
Main motor power |
kW |
22 |
||
|
Max.speed of spindle |
r/min |
3000 |
||
|
Others
|
Power Supply |
kVA |
50 |
|
|
Volume (length x width x height) |
mm |
5600 × 2452 × 2260 (including chip conveyor) |
||
|
Total weight |
kg |
9200 |
||
