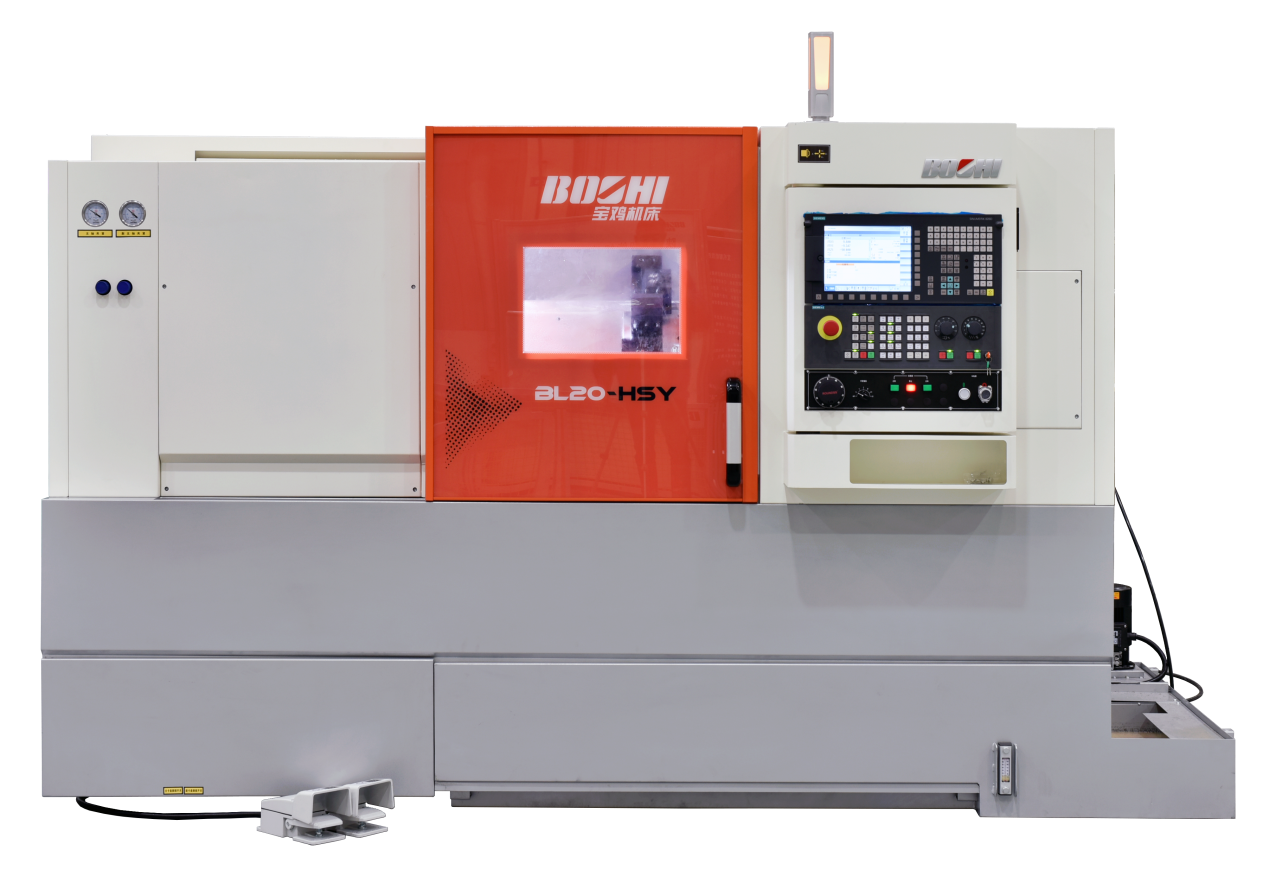

BL20-HSY is a high speed and high precision turning and milling center, the machine is equipped with double electric spindle, 12- station servo power turret, high rigidity roller linear guideway, with Y axis function and double C axis function, can complete the workpiece’s turning and milling processing. Especially suitable for parts to complete all or most of the process of turning and milling. Mainly used in automotive, machinery and other industries for precision machining parts.
|
|
Model Parameter |
UNIT |
BL20-HSY |
|
Capacity |
Max. Swing over bed |
mm |
Φ695 |
|
Max. turning length |
mm |
500 |
|
|
Max. turning diameter |
mm |
φ340 |
|
|
Standard working diameter |
mm |
360 |
|
|
Max. Bar diameter |
mm |
Φ65 |
|
|
Spindle |
Chuck diameter |
inch |
8'' hollow |
|
Spindle thru-hole |
mm |
Φ76 |
|
|
spindle speed |
rpm |
35-5000 |
|
|
BMTSpindle motor power |
kW |
21.5（40%ED）/19.6 |
|
|
Sub-spindle |
Chuck diameter |
mm |
6'' hollow |
|
Spindle thru-hole |
|
Φ53 |
|
|
spindle speed |
m/min |
35-6000 |
|
|
BMTSpindle motor power |
|
12.6（40%ED）/10.3 |
|
|
Turret |
Capacity of tools |
|
12 |
|
Milling spindle speed range |
mm |
25-125 |
|
|
Tools size (boring diameter) |
mm |
25/Φ40 |
|
|
Milling spindle motor power(40%ED) |
mm |
4/5.5 |
|
|
Feed |
Rapid speed X/Z/Y |
mm |
30/10/30/30 |
|
Travel X/Z/Y |
mm |
190/±50/605/580 |
|
|
Other |
Power |
KVA |
55 |
|
Dimensions （L×W×H） |
mm |
3050×2130×1755 |
|
|
Machine weight (net weight) |
Kg |
4850 |
