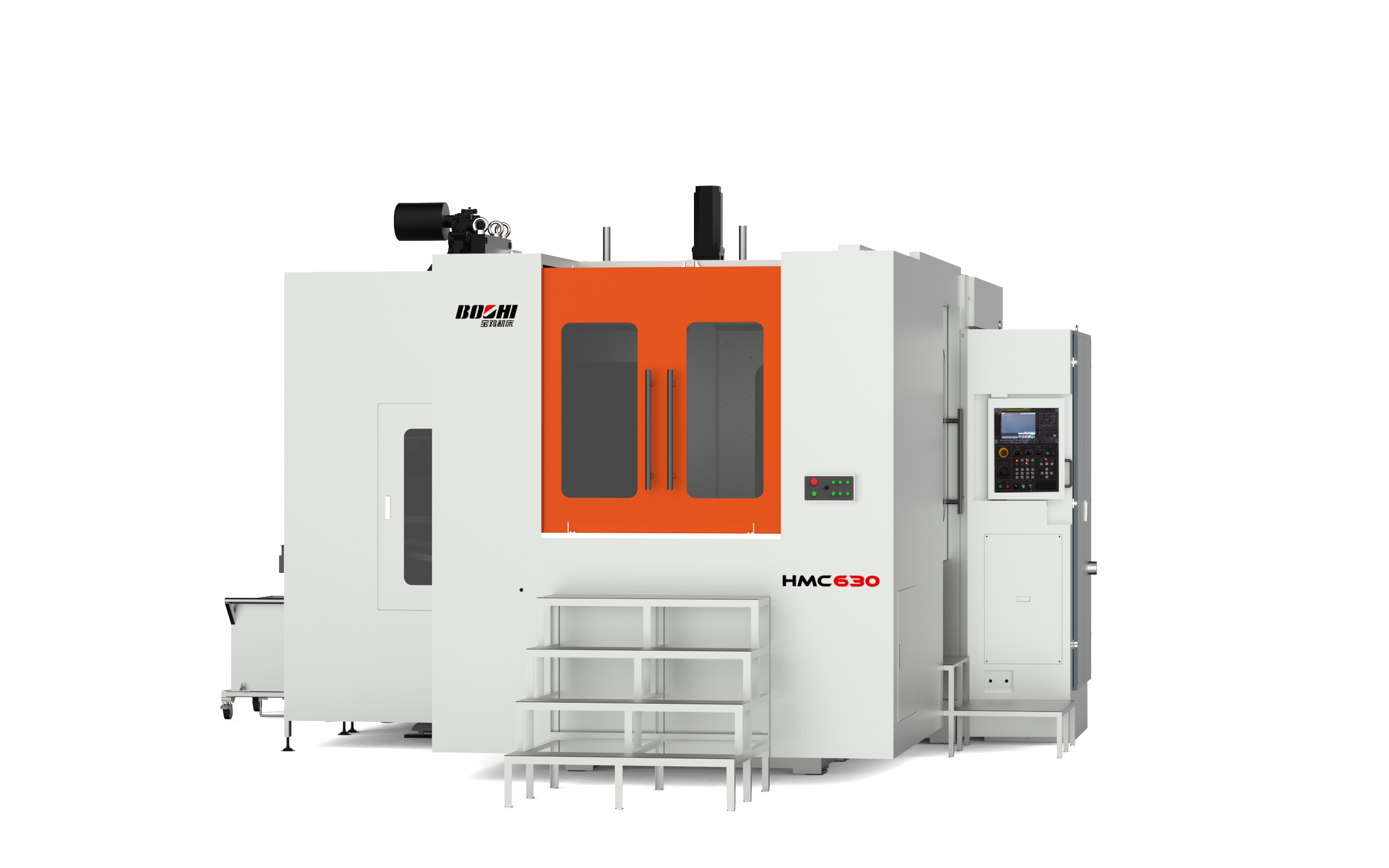

The HMC630 horizontal machining center adopts a positive T - shaped structure, an integral base, a large - span double - wall column, and imported roller guideways for its three axes, endowing the whole machine with high structural rigidity. The machine tool uses forced - cooling screw bearings and a forced - cooling direct - connected spindle, which effectively ensures the accuracy stability of the machine tool.
The machine tool is standard - equipped with a double - pallet automatic workpiece exchange system, which can be used for mass multi - surface machining of parts such as boxes, discs, plate - shells, and machine bases, and is also suitable for the finish - machining of various molds.
|
Feed |
Item |
HMC630 |
|
X-axis（mm） |
1000 |
|
|
Y-axis（mm） |
850 |
|
|
Z-axis（mm） |
850 |
|
|
Distance from Spindle End to Worktable Center (mm) |
200-1050 |
|
|
Distance from Spindle Center to Top of Pallet (mm)
|
75-925 |
|
|
Worktable |
Worktable size（mm） |
630×630 |
|
360×1°(Optional 360×0.001°) |
|
|
Worktable Type |
M16 |
|
|
Load Capacity (kg) |
1200 |
|
|
Maximum Workpiece Size Swing Diameter (mm) |
Ф1000，H1000 |
|
|
Pallet Exchange Type |
Rotary |
|
|
Pallet Exchange Time (s) |
16 |
|
|
Number of Pallets |
2 |
|
|
Maximum Torque of Worktable (Nm) |
4500 |
|
|
Spindle |
Spindle Speed (r/min) |
6000 |
|
Spindle Power (kW) |
18.5/22（FANUC），21.5（SIEMENS） |
|
|
Spindle Torque (Nm) |
472/560（FANUC），472（SIEMENS） |
|
|
Inner Diameter of Front Spindle Bearing (mm) |
100 |
|
|
Spindle taper |
BT50 |
|
|
Spindle Cooling |
Roller Linear Guideway |
|
|
Spindle Cooling Water Outlet Form |
7/7/7 (FANUC), 7.1/7.1/7.1 (Siemens) |
|
|
Feed |
Guideway |
36/36/36 |
|
Feed Motor X/Y/Z (kW) |
12000 |
|
|
Rapid Feed Speed X/Y/Z/B (m/min) |
50/50/50 |
|
|
Cutting Feed Speed X/Y/Z/B (mm/min) |
Forced Cooling |
|
|
Screw Diameter X/Y/Z (mm) |
Optional |
|
|
Screw Bearing Cooling |
Roller Linear Guideway |
|
|
Three - axis Grating |
7/7/7 (FANUC), 7.1/7.1/7.1 (Siemens) |
|
|
Tool |
Number of Tools Accommodated (pcs) |
40 |
|
Tool Exchange Method |
Robotic |
|
|
Tool Selection Method |
Bidirectional |
|
|
Maximum Tool Weight (kg) |
25 |
|
|
Maximum Tool Diameter (mm) (Full Tool/Adjacent Empty) |
125/250 |
|
|
Maximum Tool Length (mm) |
400 |
|
|
Tool Shank Type |
MAS403 BT50 |
|
|
Drawbar Screw Type |
MAS403 P50T - 1 (45°) |
|
|
Tool - changing Time (T - T) (s) |
4 |
|
|
Accuracy
|
Positioning Accuracy (mm) |
0.010 |
|
Positioning Accuracy with Grating Scale (mm) |
0.008 |
|
|
Repeat - positioning Accuracy (mm) |
0.008 |
|
|
Repeat - positioning Accuracy with Grating Scale (mm) |
0.005 |
|
|
Worktable Indexing Positioning Accuracy (arcsec) |
14 |
|
|
Worktable Repeat Indexing Positioning Accuracy (arcsec) |
8 |
|
|
Other |
Air Source (MPa) |
0.6-0.8 |
|
Cutting Fluid Tank Capacity (L) |
600 |
|
|
Power Supply (kW) |
60 |
|
|
Machine Tool Overall Dimensions (mm) (Excluding Chip Conveyor, Chip - receiving Cart, Hydraulic Station, etc.) |
5800×4700×3500 |
|
|
Machine Tool Weight (kg) |
25000 |
